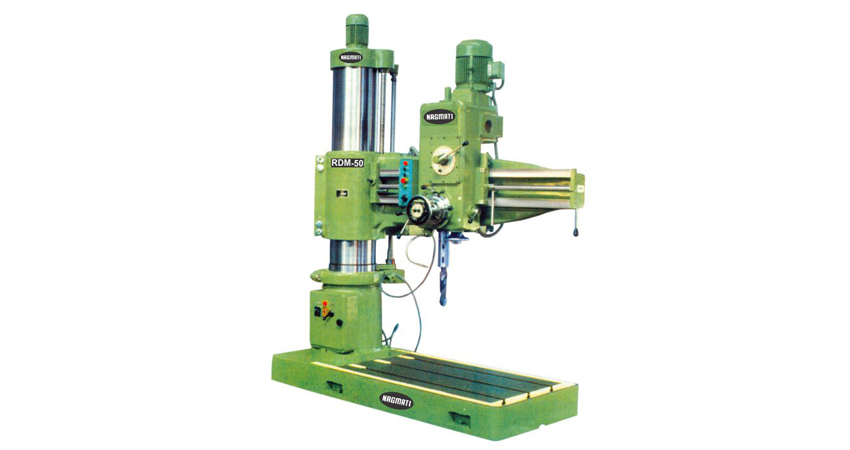

Specification |
50/1500 |
50/1900 |
50/2300 |
| Drilling capacity in steel / C. I. |
50mm / 60mm | 50mm / 60mm | 50mm / 60mm |
| Tapping cap. in steel C.I (Fine Pitch) | 56mm / 70mm | 56mm / 70mm | 56mm / 70mm |
| Taper in spindle nose | MT-5 | MT-5 | MT-5 |
| Maximum travel of spindle | 325mm | 325mm |
325mm |
| Number of spindle speed | 12 |
12 | 12 |
| Range of spindle speed (rpm) Standard / Optional | 40-1700 / 50-2100 | 40-1700 / 50-2100 |
40-1700 / 50-2100 |
| Number of power feeds / range | 6/0.12-1.25 | 6/0.12-1.25 | 6/0.12-1.25 |
| Range of power feed mm/rev | 0.125-1.25 |
0.125-1.25 |
0.125-1.25 |
| Spindle nose outside dia. | 82mm | 82mm | 82mm |
| Spindle sleeve outside dia. | 82mm | 82mm | 82mm |
| Drilling Radius max/min | 1500 / 530 mm |
1890 / 530 mm |
2350 / 530 mm |
| Distance of spindle centre from column sleeve max/min | 1325 / 355 mm | 1715 / 355 mm | 2150 / 355 mm |
| Drill head traverse. Max | 970 mm | 1360 mm | 1800 mm |
| Diameter of column sleeve | 325 mm | 325 mm | 325 mm |
| Distance of spindle face from base plate top max. | 1420 / 355 mm | 1450 / 385 mm | 1645 / 380 mm |
| Traverse of arm | 740 mm | 740 mm | 940 mm |
| Swing of arm | +- 180 deg. | +- 180 deg. | +- 180 deg. |
| Working surface of base plate (L x W x H) | 1540 X 910 X 210 mm |
1720 X 910 X 210 mm |
2310 X 1000 X 220 mm |
| Overall size of base plate | 2220 X 935 mm | 2420 X 925 mm | 3100 X 1015 mm |
| Power Supply A.C. | 415V, 3 Phase | 415V, 3 Phase | 415V, 3 Phase |
| Power of Drilling motor / Elevating motor kw/hp (two speed motor) | .50 hz / 3.6/4.5 (4.8/6.1) | .50 hz / 3.6/4.5 (4.8/6.1) | .50 hz / 3.6/4.5 (4.8/6.1) |
| Dimensions of packing | 2800 X 1280 | 3060 X 1280 | 3265 X 1020 |
| Net / Gross weight of machine (approx) | 3550 Kgs. / 4500 Kgs. | 3950 Kgs. / 5000 Kgs. | 4600 Kgs. / 5800 Kgs. |
Standard Accessories
Electro Mechanical Clamping for Drill Head, Arm & Column, Complete Electrical with Motor and Panel, Drill Drift, Fix Spanner, Oil Can, Instruction & Spare part manual.
Optional Accessories
| Box Table (500 x 500 x 400) | Drill Sleeve | Foundation Bolt & Setting Bolt with Nut & Washer |
| Tilting Table (725 x 500 x 530) | Drill Chuck with Key | Sea Worthy Wooden Packing |
| Coolant Equipment with Built-in Tank | Machine Lamp |
