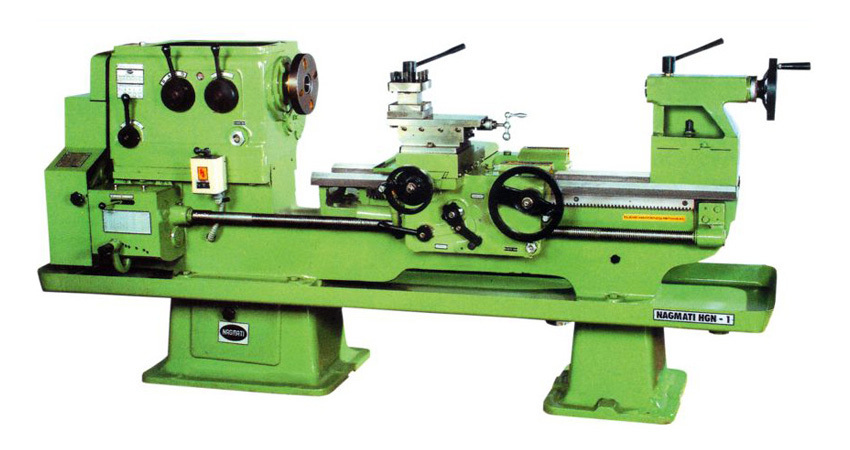

Specification |
HGN-250 /
10" CH |
HGN-300 /
12" CH |
HGN-375 /
15" CH |
| Center Height | 250mm | 300mm | 375mm |
| Admit Betweeb Center | 450-4000mm | 450-4000mm | 450-4000mm |
| Swing over bed | 475mm | 595mm | 735mm |
| Swing over Cross Slide | 300mm | 400mm | 535mm |
| Swing in Gap | 785mm | 885mm | 1000mm |
| Width of Gap | 200mm | 200mm | 200 |
| Width of Bed | 325mm | 325mm | 375mm |
| Spindle Nose / Bore / Taper | Threaded / 52mm / MT-5 | Threaded / 52mm / MT-5 | Threaded / 52mm / MT-5 |
| Spindle Speed / Range | 8/50-1235rpm | 8/50-1235rpm | 8/50-1235rpm |
| Motor | 3hp | 3hp | 3hp |
| Tailstock RAM Dia. | 63mm | 63mm | 63mm |
| RAM Travel / Taper | 200mm / MT-4 | 200mm / MT-4 | 200mm / MT-4 |
Hardened and ground bed, Hardened & ground gears in headstock, Threaded Nose Spindle, Norton Gear Box for Metric/INCH Thread with Electric Motor and Electricals, Machine is Tested to IS-1878 (Part) 1993.
Standard Accessories
Carrier plate, Centre adaptor, Electric motor - 3 HP / 2.25 KW - 3 Phase - 50 HZ 440, Reversible switch, Change gear set, (for metric and inch threads), Tool post spanner, Thread dia indicator, Dead cnetres (MT-4) - 2 Nos. Instruction manual, V-Belts, Norton gear box.
Optional Accessories
| 80 mm spindle bore | Jaw Independent Chuck | Revolving Center | Quick Change Toolpost |
| Face plate | Steady Rest PAD Type | Rear Splash Guard 1 mtr. | Machine Lamp |
| Chuck Plate | Steady Rest BRG Type | Taper Turning Attachment | Coolant Pump |
| 3 Jaw True Chuck | Follow Rest PAD Type | Rear Toolpost | Foot Operating Brake |
